9402A

AoIP System Management Device for Dante to AES/EBU

The 9402A AoIP System Management Device for Dante to AES/EBU is a Dante-centric multichannel Audio-over-IP (AoIP) interface, designed to seamlessly integrate Smart Active Monitoring (SAM) systems into modern broadcast and production networks. Built for immersive and scalable workflows, the 9402A delivers high-quality multichannel audio distribution over standard IP infrastructures, with a strong emphasis on robust Dante-based connectivity and system reliability.

Smart Active Monitoring (SAM™) and GLM™ calibration technology

Audio-over-IP (AoIP)

See example setup ›

Connectivity & Technical Specifications

Technical Specifications

Audio Formats

Dante, AES67, ST2110-30

Channels

16 AES/EBU outputs

Supported Sampling Rates (fs)

44.1 / 88.2 / 96 / 176.4 / 192 kHz

Supported Word Lengths

16 / 24 / 32 bits

Ethernet

Dual Gigabit (redundant)

Outputs

DB25 AES59, XLR sub + AUX

Power Consumption

12 W (ISS < 4.5 W)

Dimensions (H × W × D)

43 × 483 × 105 mm (1¾ × 19 × 4⅛ in)

Weight

2 kg (4.4 lb)

Form Factor

1U rack

Frequency Response (-1 dB)

1 Hz – (fs/2) kHz

THD+N (1 kHz tone, 0 dBFS)

-140 dBFS / 0.00001%

Mains Voltage

100 – 230 V AC

Mains Frequency

50 – 60 Hz

Package contains

Mains cable
5 m GLM network cable
Quick Setup Guide
Operating Manual via an included QR code link

Warranty

Includes a 2-year warranty, plus an additional 3-year extended warranty when registered on MyGenelec.

GLM Calibration

Requires free GLM software and either our 9320A SAM™ Reference Controller or GLM Calibration Kit device (both sold separately) for calibration.

Color options:

Seamless AoIP Integration for Scalable, High-Resolution Monitoring

Empowers all SAM monitoring systems for Audio over IP (AoIP), including Dante, AES67, and ST 2110-30 networks, delivering seamless networked audio integration. Bit-perfect audio performance ensures pristine sound quality without any compromise.

Full compatibility with Dante Controller, Dante Director, and Dante Domain Manager enables streamlined discovery, routing, management, and media encryption across connected systems. The scalable architecture allows multiple units to be combined for virtually unlimited channel count, while a single 9402A supports immersive audio formats up to 9.1.6 (16 channels).

Flexible system design includes a free choice of any 7300 series subwoofer model to match specific monitoring requirements. An auxiliary stereo AES output is available for headphones or secondary monitoring applications, adding further versatility.

Integration with GLM 5.2 provides precise system calibration and intuitive control, ensuring optimal monitoring performance in any professional environment.

Reliable, High-Capacity AoIP Connectivity

A flexible and scalable 16-channel AoIP monitoring solution, the 9402A integrates seamlessly into Dante-based workflows while supporting AES67 and ST 2110-30 for broadcast interoperability. Each additional unit expands capacity by 16 channels, enabling effortless system growth and efficient low-frequency scaling with multiple 73xx subwoofers.

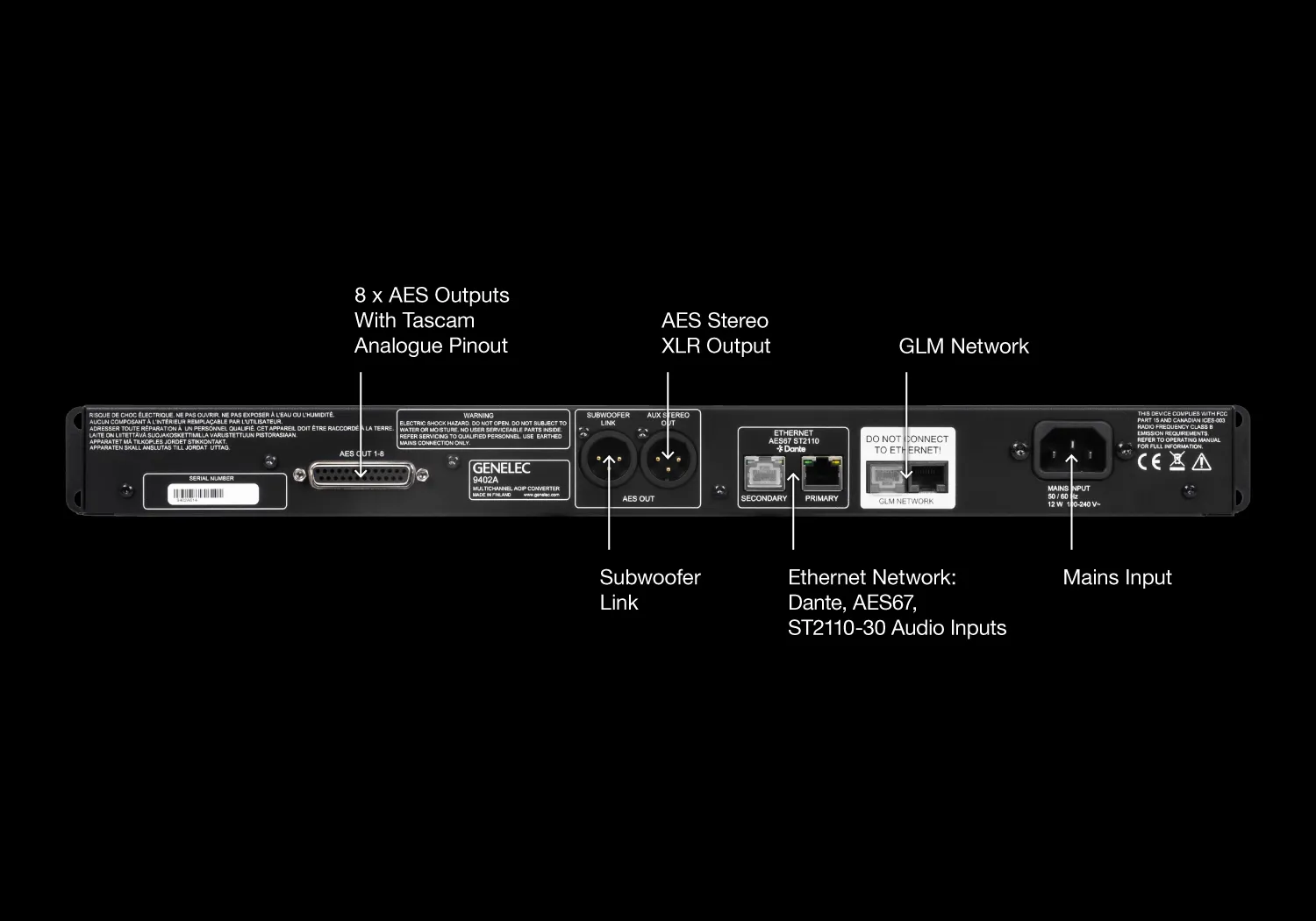

Dual redundant network ports (ST 2022-7) ensure reliable Dante streaming, while 16-channel AES/EBU output (DB25), subwoofer linking via XLR, and an auxiliary stereo AES output provide versatile connectivity. Full compatibility with Genelec SAM systems and integration with GLM 5 deliver precise calibration and control, adapting perfectly to any format, layout, and room.
